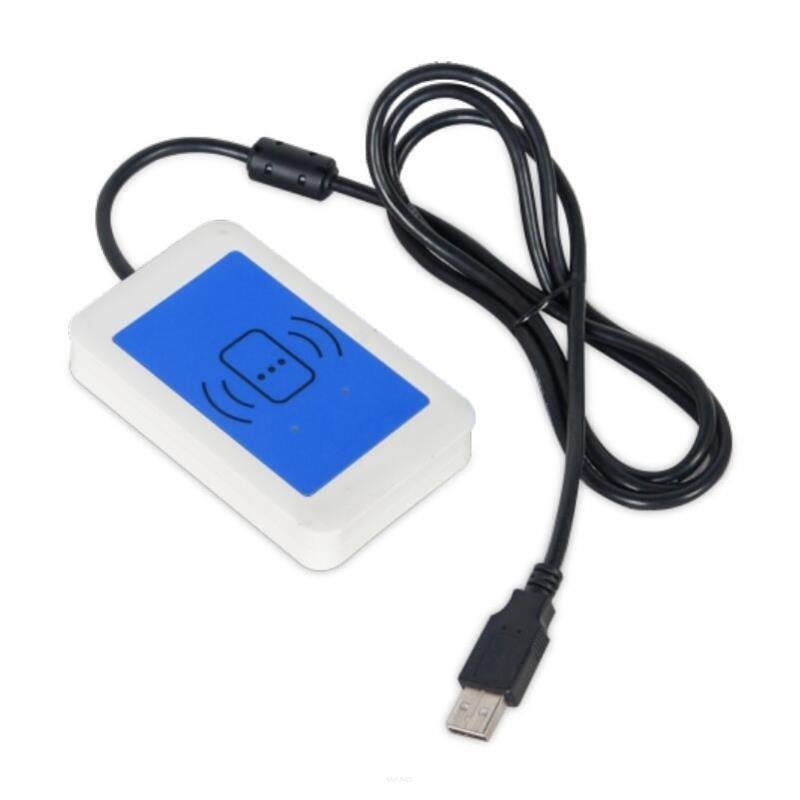

The local programmer is a key component of a system consisting of software, locks, and keys, supporting both NFC and BLE communication. It enables easy data exchange between Mifare RFID cards, NFC keys, and Bluetooth keys. The device allows reading and writing Mifare cards, configuring user permissions on a computer, and exchanging data with keys via dedicated software. It ensures fast and secure operation by connecting only to authorized Bluetooth keys. Equipped with LED indicators (red and green), an audible signal, and a PC-compatible API interface, it provides reliable integration and user-friendly operation.
| Dimensions | 108 mm (L) × 65 mm (W) × 18 mm (H) |
| Reading Distance | < 3 cm |
| Communication Port | USB 2.0 |
| Baud Rate | 115200 bps |
| Bluetooth Type | BLE 4.0 |
| Power Supply | 5V DC |
| Current Consumption | < 150 mA |
| Bluetooth Write Rate | 20 writes per second |
| NFC Write Rate | 80 writes per second |
| Operating Temperature | -30°C ~ 70°C |
| Relative Humidity | 30% ~ 97% |
